Lab 3

Keypad Scanner

Introduction

The purpose of Lab3 was to develop a scanner to read two inputs from a keypad and display them on a seven-segment display.

Schematic

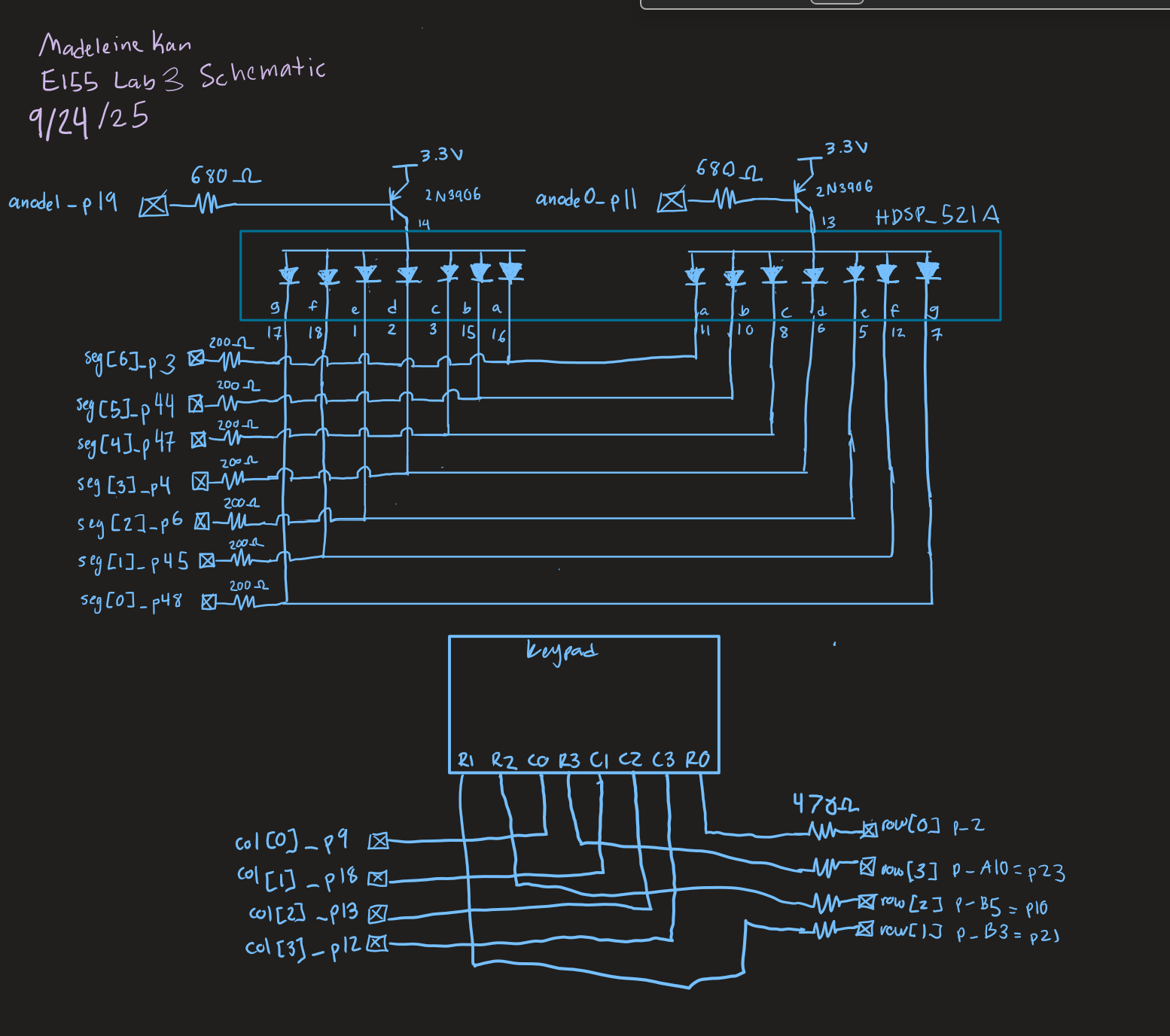

The circuit diagram is as follows:

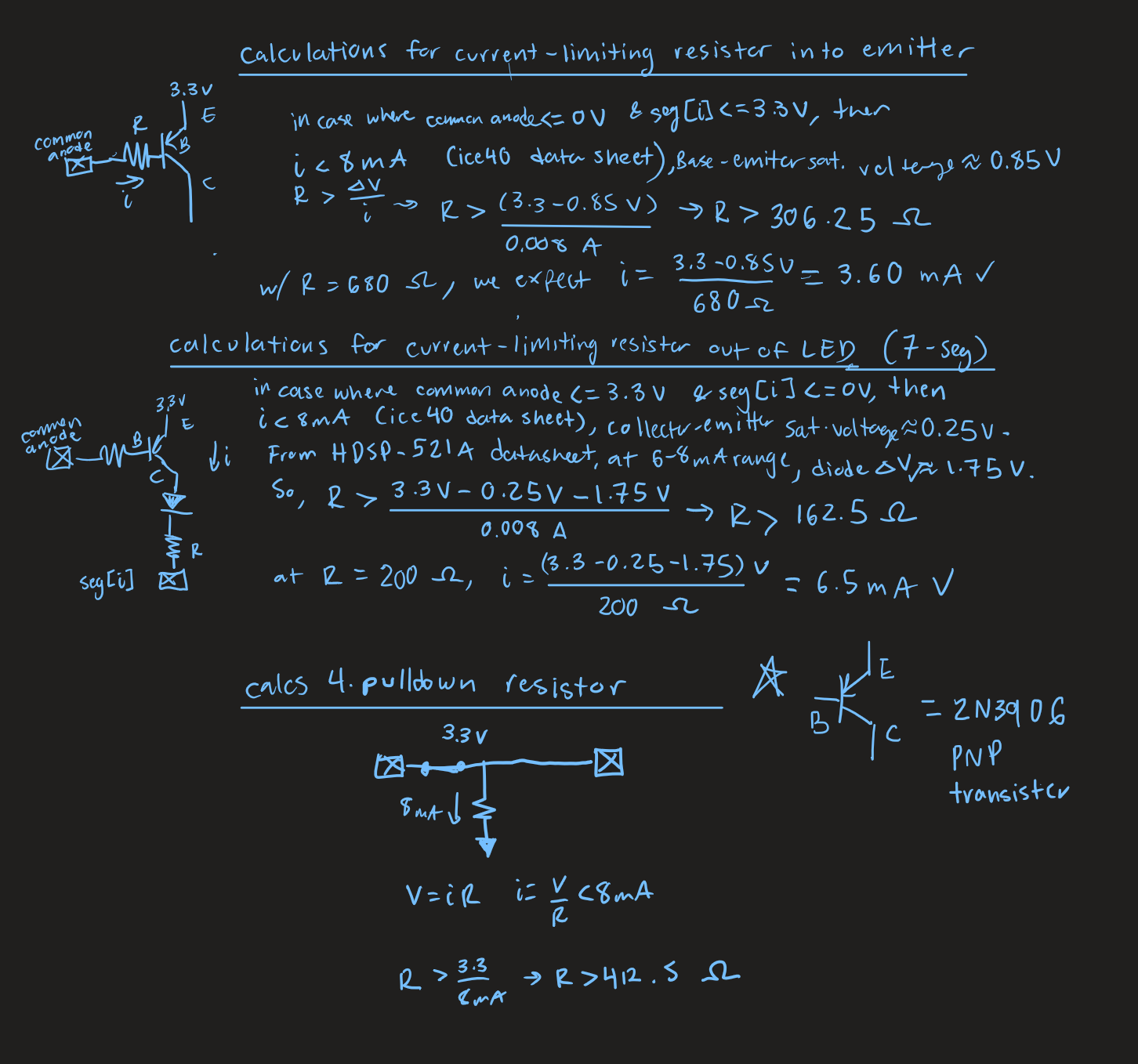

The calculations for the current-limiting resistors are as follows:

Block Diagram

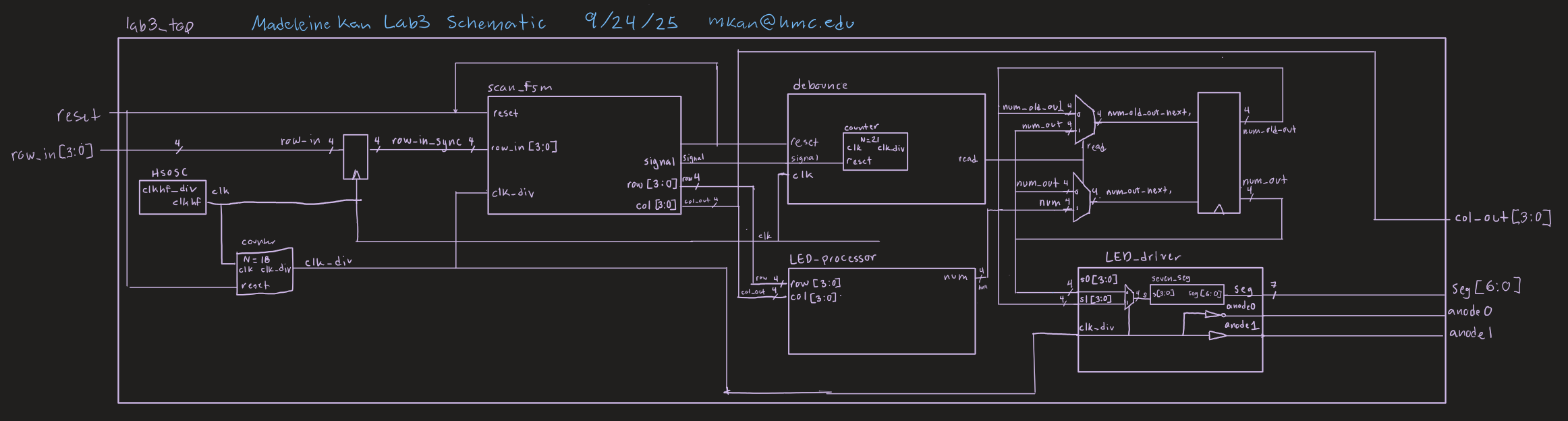

Here is the block diagram for the overall software architecture:

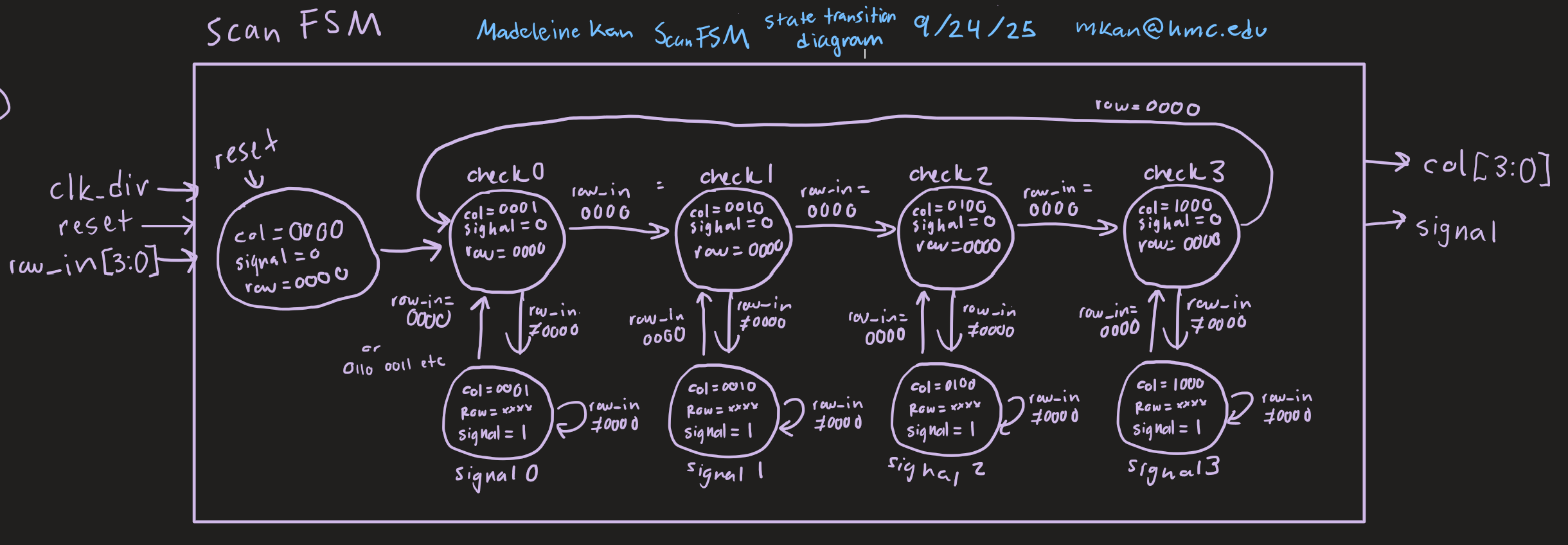

Here is the ScanFSM state transition diagram:

Here is the DebounceFSM state transition diagram:

Code:

Here is the code implementation of the system described above:

module lab3_top(
    input logic reset,
    input logic [3:0] row_in,
    output logic [3:0] col_out,
    output logic [6:0] seg,
    output logic anode0, anode1, signal
);
    logic clk, clk_div, read;
    logic [3:0] row_in_sync;
    logic [3:0] num, num_out, num_old_out, num_out_next, num_old_out_next;

    // initialize default num values
    /*
    initial begin
        num_out = 4'b0000;
        num_old_out = 4'b0000;
    end
    */

    // Internal high-speed oscillator
    HSOSC #(.CLKHF_DIV(2'b00)) // 48MHz from clk divider
     hf_osc (.CLKHFPU(1'b1), .CLKHFEN(1'b1), .CLKHF(clk));

    // Divided counter, changes ~91Hz
    counter #(18) clock_divider(clk, reset, clk_div);

    // Syncronizer
    always_ff @(posedge clk)
    if(~reset) begin
        row_in_sync <= 4'b0000;
    end
    else begin
        row_in_sync <= row_in;
    end

    // Scan FSM ... IS IT OKAY FOR THIS TO BE ON DIVIDED CLK?
    scan_fsm scanner(clk_div , reset, row_in_sync, col_out, signal);

    // debounce
    // debounce_fsm debouncer(clk, reset, signal, read);


    // led processor ... could refactor to take some stuff out of here
    // and put it in a mux up front
    led_processor process(row_in_sync, col_out, num);

    // nextstate logic
    always_comb
        // active low

        // if reading signal
        if(signal) begin // should be read
            num_out_next = num;
            num_old_out_next = num_out;
        end
        // if not reading signal, display the same
        else begin
            num_out_next = num_out;
            num_old_out_next = num_old_out;
        end

    // flop
    always_ff @(posedge clk)
        if(~reset) begin
            num_out <= 4'b0000;
            num_old_out <= 4'b0000;
        end
        else begin
            num_out <= num_out_next;
            num_old_out <= num_old_out_next;
        end


    // led driver
    led_driver driver(clk_div, num_out, num_old_out, seg, anode0, anode1);

endmodule

/*
counter.sv

Takes in clk, clock signal
Outputs clk_new, a new clock signal that rises every 2^N clk cycles
Madeleine Kan
mkan@hmc.edu
3 September, 2025
*/

module counter #(parameter N = 17)
     (input logic clk, reset,
     output logic clk_div);

    logic [N:0] counter;
    always_ff @(posedge clk) begin
        if (~reset) begin // active low
            counter <= 1'b0;
        end
        else begin
            counter <= counter + 1'b1;
        end
    end
    assign clk_div = counter[N];
endmodule

module scan_fsm
    (input logic clk_div, reset,
    input logic [3:0] row_in,
    output logic [3:0] col,
    output logic signal
    );

    // logic clk_div;
    typedef enum logic [8:0] {start, check0, check1, check2, check3, signal0, signal1, signal2, signal3} statetype;
    statetype state, nextstate;
    // 750 kHz divided clock
    // counter #(6) scan_clk(clk, reset, clk_div);


    // state register
    always_ff @(posedge clk_div)
        if (~reset) state <= start;
        else state <= nextstate;

    // state transition + output logic
    always_comb
        case(state)
            start: begin
                nextstate = check0;
                col = 4'b0000;
                signal = 1'b0;
            end
            check0: begin
                if (row_in == 4'b0000) nextstate = check1;
                else nextstate = signal0;
                col = 4'b0001;
                signal = 1'b0;
            end
            check1: begin
                if (row_in == 4'b0000) nextstate = check2;
                else nextstate = signal1;
                col = 4'b0010;
                signal = 1'b0;
            end
            check2: begin
                if (row_in == 4'b0000) nextstate = check3;
                else nextstate = signal2;
                col = 4'b0100;
                signal = 1'b0;
            end
            check3: begin
                if (row_in == 4'b0000) nextstate = check0;
                else nextstate = signal3;
                col = 4'b1000;
                signal = 1'b0;
            end
            signal0: begin
                if (row_in == 4'b0000) nextstate = check1;
                else nextstate = signal0;
                col = 4'b0001;
                signal = 1'b1;
            end
            signal1: begin
                if (row_in == 4'b0000) nextstate = check2;
                else nextstate = signal1;
                col = 4'b0010;
                signal = 1'b1;
            end
            signal2: begin
                if (row_in == 4'b0000) nextstate = check3;
                else nextstate = signal2;
                col = 4'b0100;
                signal = 1'b1;
            end
            signal3: begin
                if (row_in == 4'b0000) nextstate = check0;
                else nextstate = signal3;
                col = 4'b1000;
                signal = 1'b1;
            end
            default: begin
                nextstate = start;
                col = 4'b0000;
                signal = 1'b1;
            end
        endcase

endmodule

/*
debounce_fsm.sv

FSM that waits ~50 msec after recieving an input signal
for the signal to stabilize. Outputs read=1 if, after 50 msec,
the input signal is still high. Otherwise, outputs read=0.

Madeleine Kan
mkan@hmc.edu
16 September, 2025
*/
module debounce_fsm(
    input logic clk, reset, signal,
    output logic read);

    logic tryToRead, clk_div;
    typedef enum logic [4:0] {idle, count, readSignal, unReadSignal, noSignal} statetype;
    statetype state, nextstate;

    // 11.44 Hz divided clock -> 43.69 msec until clk_div reaches 1
    // resets on signal
    counter #(21) scan_clk(clk, signal, clk_div);

    // state register
    always_ff @(posedge clk)
        if (~reset) state <= idle;
        else state <= nextstate;
        // tryToRead <= signal;
        // logic tryToRead <= row_in_sync == row;

    // state transition logic
    always_comb
        case(state)
            idle: if (signal) nextstate = count;
                else nextstate = idle;
            count: if (clk_div && signal) nextstate = readSignal;
                    else if (clk_div && (!signal)) nextstate = noSignal;
                    else nextstate = count;
                    // // previously had the following code:
                    // else if (signal) nextstate = count;
                    // else nextstate = idle;
                    // // I took it out in case the signal goes low
                    // // in the 50 msec due to debouncing
            readSignal: nextstate = unReadSignal;
            unReadSignal: if (signal) nextstate = unReadSignal;
                            else nextstate = idle;
            noSignal: nextstate = idle;
            default: nextstate = idle;
        endcase

    // output logic
    assign read = (state === readSignal);


endmodule

/*
led_processor.sv

Combinational module, takes in the activated row and column of
the 4x4 numpad and otuputs the number corresponding to that button.
Depends on the layout of the 4x4 numpad.

Madeleine Kan
mkan@hmc.edu
16 September, 2025
*/
`timescale 1ns/1ns

module led_processor(
    input logic [3:0] row, col,
    output logic [3:0] num
);
    always_comb
        case({row, col})
            8'b00010001: num = 4'h1;
            8'b00010010: num = 4'h2;
            8'b00010100: num = 4'h3;
            8'b00011000: num = 4'hA;
            8'b00100001: num = 4'h4;
            8'b00100010: num = 4'h5;
            8'b00100100: num = 4'h6;
            8'b00101000: num = 4'hB;
            8'b01000001: num = 4'h7;
            8'b01000010: num = 4'h8;
            8'b01000100: num = 4'h9;
            8'b01001000: num = 4'hC;
            8'b10000001: num = 4'hE;
            8'b10000010: num = 4'h0;
            8'b10000100: num = 4'hF;
            8'b10001000: num = 4'hD;
            default: num = 4'b1111;
        endcase
endmodule

//  typedef enum logic [2:0] {idle, process} statetype;
//  statetype state, nextstate;

//  // state register
//  always_ff @(posedge clk)
//      if (~reset) state <= idle;
//      else state <= nextstate;

//  // state transition + output logic
//  always_comb
//      case(state)
//          idle: if (read) nextstate = process;
//                  else nextstate = idle;
//          process: nextstate = idle;
//          default: nextstate = idle;
//      endcase

//  // output logic
//  always_comb
//      if (state == process) begin
//          case({row, col})
//              8'b00010001: num_out = 4'h1;
//              8'b00010010: num_out = 4'h2;
//              8'b00010100: num_out = 4'h3;
//              8'b00011000: num_out = 4'hA;
//              8'b00100001: num_out = 4'h4;
//              8'b00100010: num_out = 4'h5;
//              8'b00100100: num_out = 4'h6;
//              8'b00101000: num_out = 4'hB;
//              8'b01000001: num_out = 4'h7;
//              8'b01000010: num_out = 4'h8;
//              8'b01000100: num_out = 4'h9;
//              8'b01001000: num_out = 4'hC;
//              8'b10000001: num_out = 4'hE;
//              8'b10000010: num_out = 4'h0;
//              8'b10000100: num_out = 4'hF;
//              8'b10001000: num_out = 4'hD;
//              default: num_out = 4'b1111;
//              endcase
//          num_old_out = num_in;
//          end
//      // maybe replace this logic with enabled flop outside of function
//      // so like .. combinational module and enabled flop outside
//      else begin
//          num_out = num_in;
//          num_old_out = num_old_in;
//      end

// endmodule

/*
led_driver.sv

Drives give LEDs and two 7-segment displays based on inputs from
eight switches. 7-segment displays count up from 0-F in hex based
on the binary value encoded by the state of the switches: the first four
correspond to the first 7-segment display, and the second four switches to
the second 7-segment display. Which set of switches (s0 or s1)
are read and which 7-seg display is visible (depending on anode0 and anode1)
depends on if clk is 0 or 1

Madeleine Kan
mkan@hmc.edu
9 September, 2025
*/
`timescale 1ns/1ns
module led_driver(
    input logic clk_div,
    input logic [3:0] s0, s1,
    output logic [6:0] seg,
    output logic anode0, anode1
);
    logic [3:0] s_in;
    logic [6:0] seg_out;

    // Mux input
    mux mux0(s0, s1, clk_div, s_in);
    // Feed input to seven_segment_display
    seven_segment_display display0(s_in, seg_out);

    // Control seven-segment display common anodes
    assign anode0 = ~clk_div;
    assign anode1 = clk_div;

    // drive seven-segment displays
    assign seg = seg_out;



endmodule

/*
mux.sv

Synchronous enabled mux with 2 inputs
all inputs and outputs are 4 bits wide

Madeleine Kan
mkan@hmc.edu
7 September, 2025
*/

`timescale 1ns/1ns

module mux(
    input logic [3:0] in0, [3:0] in1,
    input logic en,
    output logic [3:0] out);

    assign out =  en ? in1 : in0;
endmodule

/*
seven_segment_display.sv
Drives HDSP-521A Seven-Segment Display
with common anode (meaining diodes are
pulled to ground to activate)
Madeleine Kan
mkan@hmc.edu
3 September, 2025
*/

module seven_segment_display(
    input logic [3:0] s,
    output logic [6:0] seg
);
    always_comb
        case(s)
            //                abcdefg
            4'b0000: seg = 7'b0000001; // 0
            4'b0001: seg = 7'b1001111; // 1
            4'b0010: seg = 7'b0010010; // 2
            4'b0011: seg = 7'b0000110; // 3
            4'b0100: seg = 7'b1001100; // 4
            4'b0101: seg = 7'b0100100; // 5
            4'b0110: seg = 7'b0100000; // 6
            4'b0111: seg = 7'b0001111; // 7
            4'b1000: seg = 7'b0000000; // 8
            4'b1001: seg = 7'b0001100; // 9
            4'b1010: seg = 7'b0001000; // a
            4'b1011: seg = 7'b1100000; // b
            4'b1100: seg = 7'b0110001; // c
            4'b1101: seg = 7'b1000010; // d
            4'b1110: seg = 7'b0110000; // e
            4'b1111: seg = 7'b0111000; // f
            default: seg = 7'b1111111; // none
        endcase
endmodule

Results

Unfortunately, the hardware design did not work. However, the simulations did work! Here are the waveforms: lab3_top testbench:

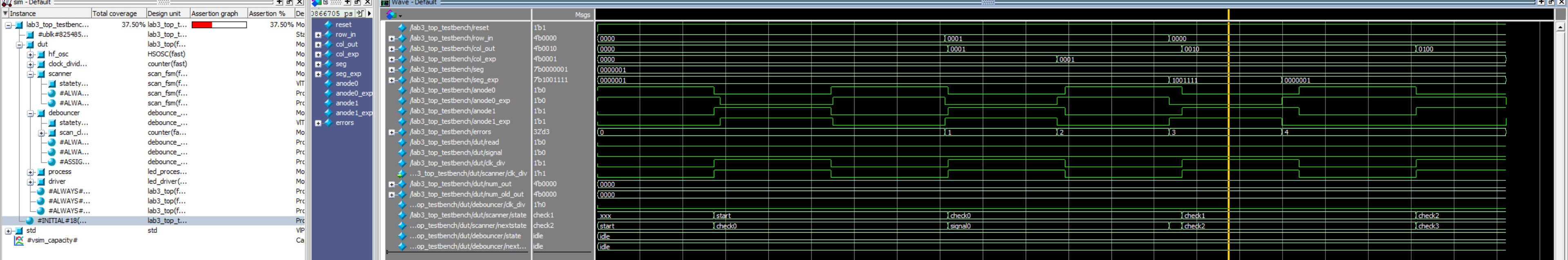

top-level testbench (didn’t fully work due to timing issues):

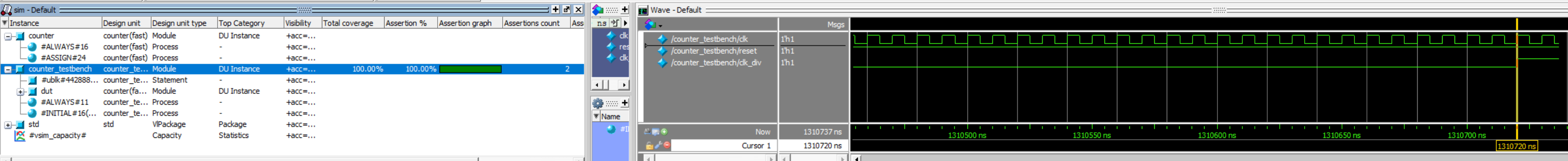

counter testbench:

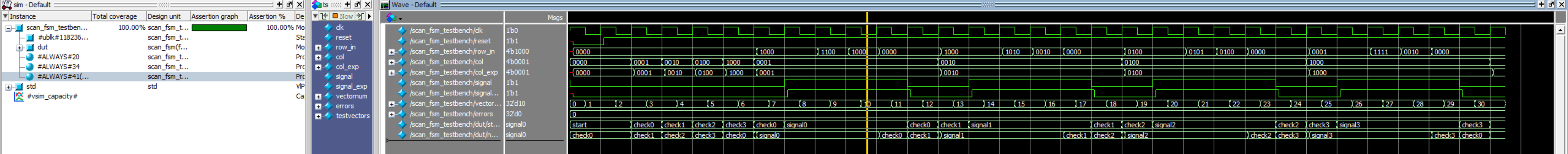

scan_fsm testbench:

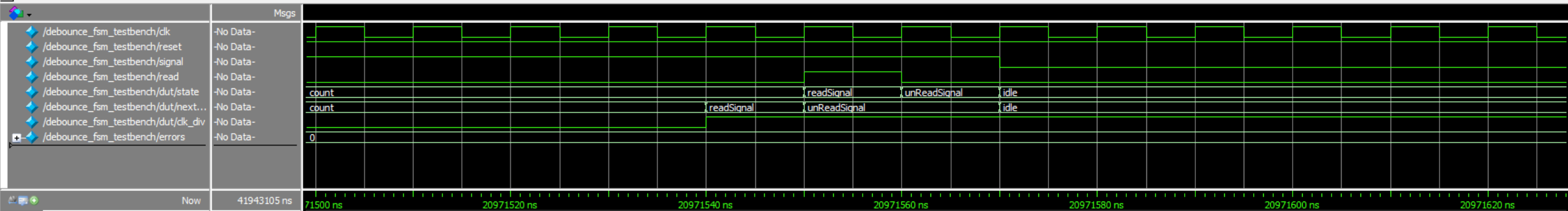

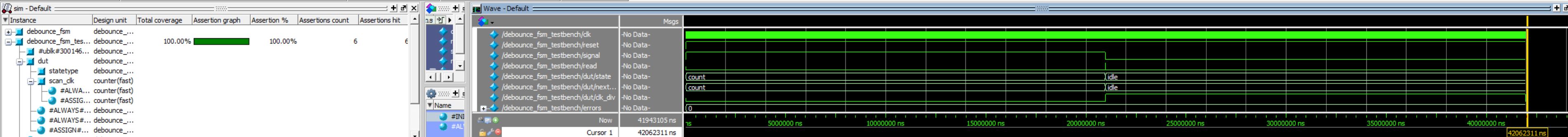

debounce_fsm testbench:

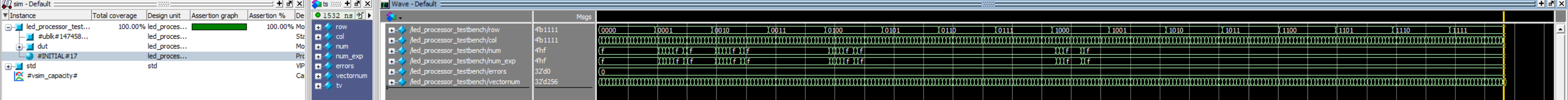

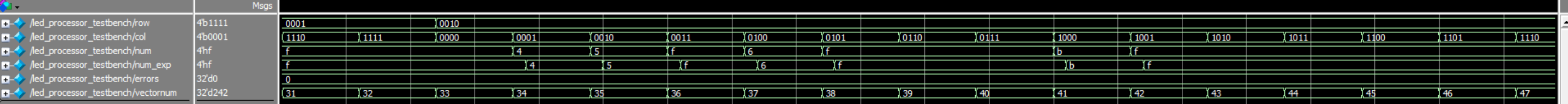

led_processor testbench:

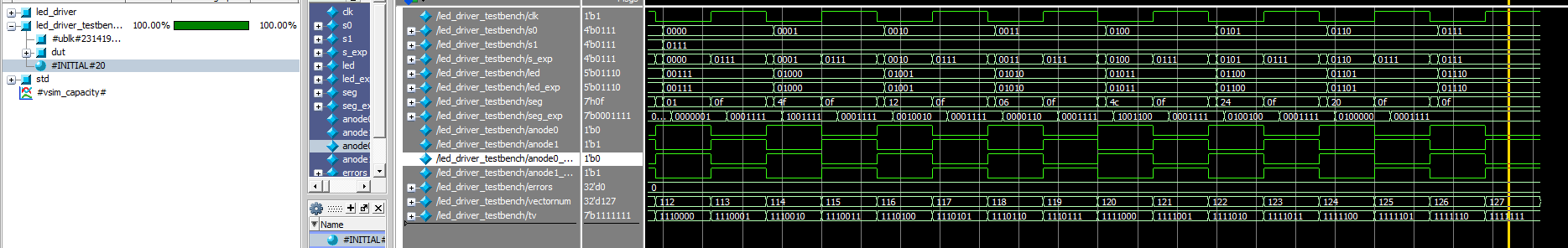

led_driver testbench:

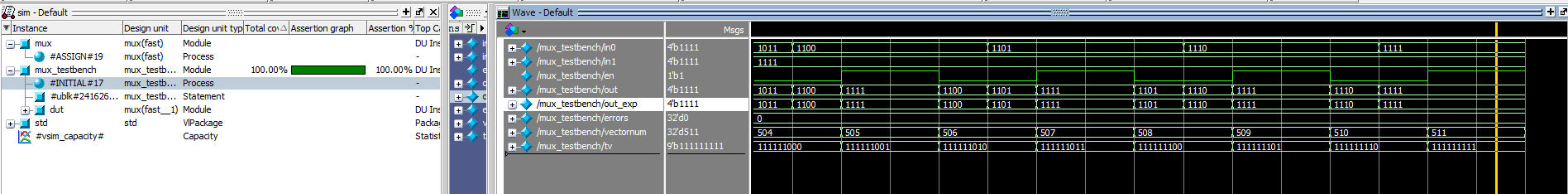

mux testbench:

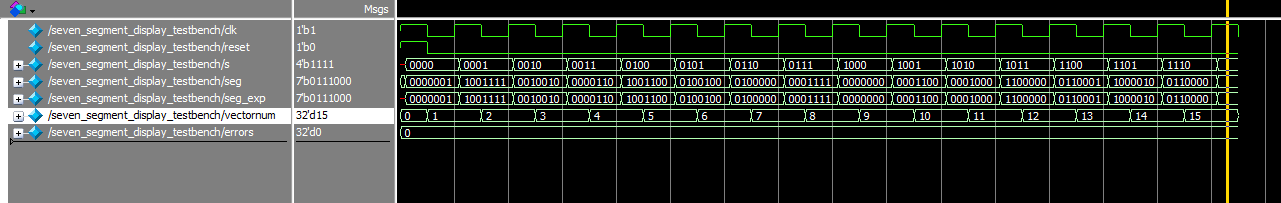

seven_segment_display testbench:

Summary

I have so far spent ~30 hours on this lab. I learned a lot about synchrounous design and partitioning complicated tasks into simultaneous finite state machines.

Testbench Code

/*
Testbench for lab3_top.sv
16 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module lab3_top_testbench();
    logic reset;
    logic [3:0] row_in;
    logic [3:0] col_out, col_exp;
    logic [6:0] seg, seg_exp;
    logic anode0, anode0_exp, anode1, anode1_exp;
    logic [31:0] errors;
    lab3_top dut(reset, row_in, col_out, seg, anode0, anode1);

    initial begin
        errors=0;
        // toggle reset, so clk_div starts at 0
        reset = 0; #21;
        reset = 1;
        #1;
        row_in=4'b0000;

        // #2621440; // 5*2^19
        // clk_div runs at 48MHz/(2^19)
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        // #2621440; // 5*2^19
        #500000;

        // wait for clk_div to rise ,  no inputs
        #5242880; // 10*2^19
        // here, fsm should be in ???
        // seg = (equivalent of 0), col=0000 anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        // #2621440;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        // wait for clk_div to rise again, still no inputs
        #5242880; // 10*2^19
        // here, fsm should be in start
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
          // wait for clk_div to rise again, still no inputs
        #5242880; // 10*2^19
        // here, fsm should be in check0
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        row_in=4'b0001;
        // wait for clk_div to rise again, now with input
        #5242880; // 10*2^19
        // should be more than enough time for the clk to rise (for syncrhonizer)
        // here, fsm should be in signal0
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0001;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        // here, read should = 1, so debounce_clk_div should start incrementing
        // wait for debounce_fsm clk_div to rise (ie 50 ms) so that num can get the value 1
        // this will take less long than the time until the next rising clk_div edge
        // #10485760 // 5*2^21
        // #1000005 // wait for clk to rise
        #5242880; // 10*2^19
        // fsm should still be in signal0
        // seg = 1001111 (equivalent of 1), col=0001, anode0 = 1, anode1 = 0
        // determine if led clk_div is 0 or 1. The following assumes it is 1
        seg_exp = 7'b1001111;
        col_exp = 4'b0001;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 1
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        row_in=4'b0000;
        // wait for clk_div to rise again, now with no input, check that seg toggles with 0
        #5242880; // 10*2^19
        // fsm should be in start
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0001;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        #5242880; // 10*2^19
        // wait for clk_div to rise again, check that seg holds & toggles with 1
        #5242880; // 10*2^19
        // fsm should be in check1
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b1001111;
        col_exp = 4'b0010;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 1
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        #1;

    $display("7 tests completed with %d errors", errors);
    $stop;
    end
endmodule

/*
Testbench for lab3_top.sv
16 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module lab3_top_testbench();
    logic reset;
    logic [3:0] row_in;
    logic [3:0] col_out, col_exp;
    logic [6:0] seg, seg_exp;
    logic anode0, anode0_exp, anode1, anode1_exp;
    logic [31:0] errors;
    lab3_top dut(reset, row_in, col_out, seg, anode0, anode1);

    initial begin
        errors=0;
        // toggle reset, so clk_div starts at 0
        reset = 0; #21;
        reset = 1;
        #1;
        row_in=4'b0000;

        // #2621440; // 5*2^19
        // clk_div runs at 48MHz/(2^19)
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        // #2621440; // 5*2^19
        #500000;

        // wait for clk_div to rise ,  no inputs
        #5242880; // 10*2^19
        // here, fsm should be in ???
        // seg = (equivalent of 0), col=0000 anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        // #2621440;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        // wait for clk_div to rise again, still no inputs
        #5242880; // 10*2^19
        // here, fsm should be in start
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
          // wait for clk_div to rise again, still no inputs
        #5242880; // 10*2^19
        // here, fsm should be in check0
        // seg = (equivalent of 0), col=0000, anode0 = 1, anode1 = 0
        seg_exp = 7'b0000001;
        col_exp = 4'b0000;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        row_in=4'b0001;
        // wait for clk_div to rise again, now with input
        #5242880; // 10*2^19
        // should be more than enough time for the clk to rise (for syncrhonizer)
        // here, fsm should be in signal0
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0001;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg =0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        // here, read should = 1, so debounce_clk_div should start incrementing
        // wait for debounce_fsm clk_div to rise (ie 50 ms) so that num can get the value 1
        // this will take less long than the time until the next rising clk_div edge
        // #10485760 // 5*2^21
        // #1000005 // wait for clk to rise
        #5242880; // 10*2^19
        // fsm should still be in signal0
        // seg = 1001111 (equivalent of 1), col=0001, anode0 = 1, anode1 = 0
        // determine if led clk_div is 0 or 1. The following assumes it is 1
        seg_exp = 7'b1001111;
        col_exp = 4'b0001;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 1
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end

        row_in=4'b0000;
        // wait for clk_div to rise again, now with no input, check that seg toggles with 0
        #5242880; // 10*2^19
        // fsm should be in start
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b0000001;
        col_exp = 4'b0001;
        anode0_exp = 1'b1;
        anode1_exp = 1'b0;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 0
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        #5242880; // 10*2^19
        // wait for clk_div to rise again, check that seg holds & toggles with 1
        #5242880; // 10*2^19
        // fsm should be in check1
        // seg = (equivalent of 0), col=0001, anode0 = 0, anode1 = 1
        seg_exp = 7'b1001111;
        col_exp = 4'b0010;
        anode0_exp = 1'b0;
        anode1_exp = 1'b1;
        #5;
        assert((seg === seg_exp) && (col_out === col_exp) && (anode0===anode0_exp) && (anode1===anode1_exp)) else begin // seg = 1
            $display("Error: row_in = %b , reset = %b ", row_in, reset);
            $display(" outputs: col = %b , (%b expected), seg = %b (%b expected), anode0,1 = %b (%b expected)", col_out, col_exp, seg, seg_exp, {anode0, anode1}, {anode0_exp, anode1_exp});
            errors = errors + 1;
        end
        #1;

    $display("7 tests completed with %d errors", errors);
    $stop;
    end
endmodule

/*
Testbench for counter.sv
1 bit input, 1 bit output, output flips after 2^17 cycles of the input.
3 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
module counter_testbench();
    logic clk, reset, clk_div;
    counter #(17) dut(clk, reset, clk_div);
    always
        begin
            clk=1; #5;
            clk=0; #5;
        end
    initial begin
        reset=0; #5;
        reset=1;
        #7
        assert(clk_div == 1'b0) else $display("Error: inputs = %b", clk, " outputs = %b(0 expected)", clk_div);
        // #655365; // 5*2^17 + 5
        #1310725 // 10*2^17+5
        assert(clk_div == 1'b1) else $display("Error: inputs = %b", clk, " outputs = %b(1 expected)", clk_div);
        $display("tests completed!");
        $stop;
    end
endmodule

/*
Testbench for scan_fsm.sv

16 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module scan_fsm_testbench();
    logic clk, reset;
    logic [3:0] row_in;
    logic [3:0] col, col_exp;
    logic signal, signal_exp;
    logic [31:0] vectornum, errors;
    logic [9:0] testvectors [10000:0];

    scan_fsm dut(clk, reset, row_in, col, signal);

    always begin
        clk = 1; #5;
        clk = 0; #5;
    end

    initial
        begin
            $readmemb("C:/Users/mkan/Documents/GitHub/e155-lab3/lab3/source/source/scan_fsm.tv", testvectors);
            vectornum = 0;
            errors = 0;
            // reset = 0; #21;
            // reset = 1;
        end

    always @(posedge clk)
        begin
            #1;
            {reset, row_in, col_exp, signal_exp} = testvectors[vectornum];
            // #640; // 10*2^6
        end

    always @(negedge clk)
        begin
            assert((col_exp === col) && (signal_exp === signal)) else begin
                $display("Error: row_in = %b , reset = %b ", row_in, reset);
                $display(" outputs: col = %b , (%b expected), signal = %b (%b expected)", col, col_exp, signal, signal_exp);
                errors = errors + 1;
            end
        vectornum = vectornum + 1;
        // #1280; // 10*2^6
        if (testvectors[vectornum] === 10'bx) begin
            $display("%d tests completed with %d errors", vectornum, errors);
            $stop;
        end
        end
endmodule

/*
Testbench for debounce.sv
16 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module debounce_fsm_testbench();
    logic clk, reset, signal;
    logic read;
    logic [31:0] errors;
    //logic [3:0] tv;
    debounce_fsm dut(clk, reset, signal, read);

    always begin
        clk = 1; #5;
        clk = 0; #5;
    end

    initial begin
        errors=0;
        reset = 0; #21;
        reset = 1;
        #1
        // start in idle state
        signal = 0;
        #10
        assert(read === 0) else begin
            errors = errors+1;
            $display("Error: read = %b, 0 expected", read);
        end
        #1

        // get signal, start in idle state
        signal = 1;
        #10
        assert(read === 0) else begin
            errors = errors+1;
            $display("Error: read = %b, 0 expected", read);
        end
        #20971520 // wait 2^21 - 10 cycles (10*2^21 - 15)

        // move to readSignal state
        assert(read === 1) else begin
            errors = errors+1;
            $display("Error: read = %b, 1 expected", read);
        end

        // wait another clock cycle, return to idle
        #11
        assert(read === 0) else begin
            errors = errors+1;
            $display("Error: read = %b, 0 expected", read);
        end
        #1
        signal = 0;
        #20971525 // wait 2^21 cycles (10*2^21 + 5)#10

        // stay at idle bc no signal
        assert(read === 0) else begin
            errors = errors+1;
            $display("Error: read = %b, 1 expected", read);
        end
        signal = 0;
        #10
        assert(read === 0) else begin
            errors = errors+1;
            $display("Error: read = %b, 1 expected", read);
        end

        $display("6 tests completed with %d errors", errors);
        $stop;
    end
endmodule

/*
Testbench for led_processor.sv
two 4-bit inputs, 4-bit output
16 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module led_processor_testbench();
    logic [3:0] row, col;
    logic [3:0] num, num_exp;
    logic [31:0] errors, vectornum;
    logic [7:0] tv;
    led_processor dut(row, col, num);

    initial
        begin
            errors=0;
            vectornum=0;
            for(tv=8'b00000000; tv<=8'b11111111; tv = tv+1'b1) begin
                row = tv[7:4];
                col = tv[3:0];
                vectornum = vectornum + 1;
                #1
                case({row, col})
                     8'b00010001: num_exp = 4'h1;
                    8'b00010010: num_exp = 4'h2;
                    8'b00010100: num_exp = 4'h3;
                    8'b00011000: num_exp = 4'hA;
                    8'b00100001: num_exp = 4'h4;
                    8'b00100010: num_exp = 4'h5;
                    8'b00100100: num_exp = 4'h6;
                    8'b00101000: num_exp = 4'hB;
                    8'b01000001: num_exp = 4'h7;
                    8'b01000010: num_exp = 4'h8;
                    8'b01000100: num_exp = 4'h9;
                    8'b01001000: num_exp = 4'hC;
                    8'b10000001: num_exp = 4'hE;
                    8'b10000010: num_exp = 4'h0;
                    8'b10000100: num_exp = 4'hF;
                    8'b10001000: num_exp = 4'hD;
                    default: num_exp = 4'b1111;
                endcase
                #5;
                assert(num === num_exp) else begin
                    $display("Error: row = %b, col = %b", row, col);
                    $display(" output: num = %b(%b expected)", num, num_exp);
                    errors = errors + 1;
                end
                if (tv == 8'b11111111) begin
                    vectornum = vectornum + 1;
                    $display("%d tests completed with %d errors", vectornum, errors);
                    $stop;
                end
            end
            $display("%d tests completed with %d errors", vectornum, errors);
            $stop;
        end
endmodule

/*
Testbench for led_driver.sv
3-bit input, 1-bit output
7 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module led_driver_testbench();
    logic clk_div;
    logic [3:0] s0, s1, s_exp;
    logic [4:0] led, led_exp;
    logic [6:0] seg, seg_exp;
    logic anode0, anode1, anode0_exp, anode1_exp;
    logic [31:0] errors, vectornum;
    logic [6:0] tv;
    led_driver dut(clk_div, s0, s1, led, seg, anode0, anode1);

    initial
        begin
            errors=0;
            vectornum=0;
            for(tv=9'b000000000; tv<=9'b111111111; tv = tv+1'b1) begin
                clk_div = tv[0];
                #1
                s1 = tv[8:5];
                s0 = tv[4:1];
                assign led_exp = s0+s1;
                assign anode0_exp = ~clk_div;
                assign anode1_exp = clk_div;
                assign s_exp = clk_div?s1:s0;
                #1
                case(s_exp)
                    //                abcdefg
                    4'b0000: seg_exp = 7'b0000001; // 0
                    4'b0001: seg_exp = 7'b1001111; // 1
                    4'b0010: seg_exp = 7'b0010010; // 2
                    4'b0011: seg_exp = 7'b0000110; // 3
                    4'b0100: seg_exp = 7'b1001100; // 4
                    4'b0101: seg_exp = 7'b0100100; // 5
                    4'b0110: seg_exp = 7'b0100000; // 6
                    4'b0111: seg_exp = 7'b0001111; // 7
                    4'b1000: seg_exp = 7'b0000000; // 8
                    4'b1001: seg_exp = 7'b0001100; // 9
                    4'b1010: seg_exp = 7'b0001000; // a
                    4'b1011: seg_exp = 7'b1100000; // b
                    4'b1100: seg_exp = 7'b0110001; // c
                    4'b1101: seg_exp = 7'b1000010; // d
                    4'b1110: seg_exp = 7'b0110000; // e
                    4'b1111: seg_exp = 7'b0111000; // f
                    default: seg_exp = 7'b1111111; // none
                endcase
                #5;
                assert({led, seg, anode0, anode1} === {led_exp, seg_exp, anode0_exp, anode1_exp}) else begin
                    $display("Error: clk_div = %b, s0 = %b, s1 = %b", clk_div, s0, s1);
                    $display(" outputs: (led, seg, anode0, anode1) = %b(%b expected)", {led, seg, anode0, anode1}, {led_exp, seg_exp, anode0_exp, anode1_exp});
                    errors = errors + 1;
                end
                if (tv == 7'b1111111) begin
                    vectornum = vectornum + 1;
                    $display("%d tests completed with %d errors", vectornum, errors);
                    $stop;
                end
                else begin
                    vectornum = vectornum + 1;
                end
            end
            $display("%d tests completed with %d errors", vectornum, errors);
            $stop;
        end
endmodule

/*
Testbench for mux.sv
3-bit input, 1-bit output
7 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
`timescale 1ns/1ns

module mux_testbench();
    logic [3:0] in0, in1;
    logic en;
    logic [3:0] out, out_exp;
    logic [31:0] errors, vectornum;
    logic [8:0] tv;
    mux dut(in0, in1, en, out);
    initial
        begin
            errors=0;
            vectornum=0;
            for(tv=9'b000000000; tv<=9'b111111111; tv = tv+1'b1) begin
                en = tv[0];
                #5;
                in1 = tv[8:5];
                in0 = tv[4:1];
                assign out_exp = en? in1 : in0;
                #5;
                assert(out == out_exp) else begin
                    $display("Error: inputs = %b", tv);
                    $display(" outputs = %b(%b expected)", out, in1);
                    errors = errors + 1;
                end
                if (tv == 9'b111111111) begin
                    vectornum = vectornum + 1;
                    $display("%d tests completed with %d errors", vectornum, errors);
                    $stop;
                end
                else begin
                    vectornum = vectornum + 1;
                end
            end
            $display("%d tests completed with %d errors", vectornum, errors);
            $stop;
        end
endmodule

/*
Testbench for seven_segment_display.sv
4-bit input, 7-bit output
3 September 2025
Madeleine Kan
mkan@g.hmc.edu
*/
module seven_segment_display_testbench();
    logic clk, reset;
    logic [3:0] s;
    logic [6:0] seg, seg_exp;
    logic [31:0] vectornum, errors;
    logic [10:0] testvectors[10000:0];
    seven_segment_display dut(s, seg);
    always
        begin
            clk=1; #5;
            clk=0; #5;
        end
    initial
        begin
            $readmemb("C:/Users/mkan/Documents/GitHub/e155-lab2/lab2/source/impl_1/seg_exp.tv", testvectors);
            vectornum=0;
            errors=0;
            reset=1; #5;
            reset=0;
        end
    always @(posedge clk)
        begin
            #1;
            {s, seg_exp} = testvectors[vectornum];
        end
    always @(negedge clk)
        if (~reset) begin
            if (seg !== seg_exp) begin
                $display("Error: inputs = %b", seg);
                $display(" outputs = %b(%b expected)", seg, seg_exp);
                errors = errors + 1;
            end
            vectornum = vectornum + 1;
            if (testvectors[vectornum] === 11'bx) begin
                $display("%d tests completed with %d errors", vectornum, errors);
                $stop;
            end
        end
endmodule
